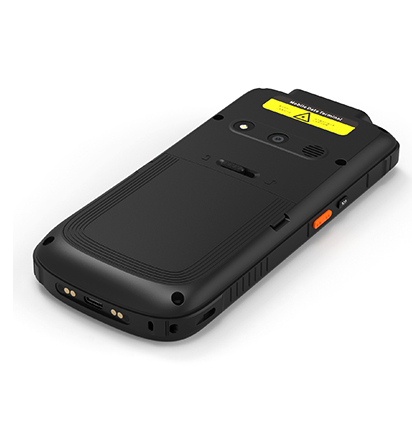

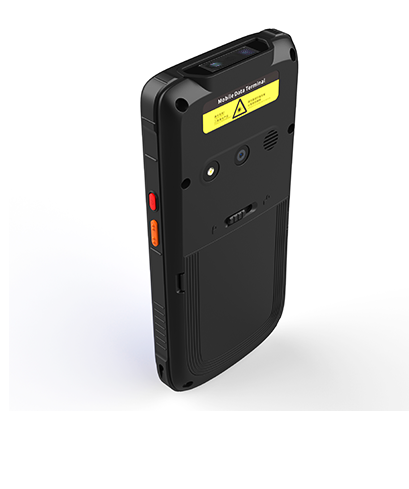

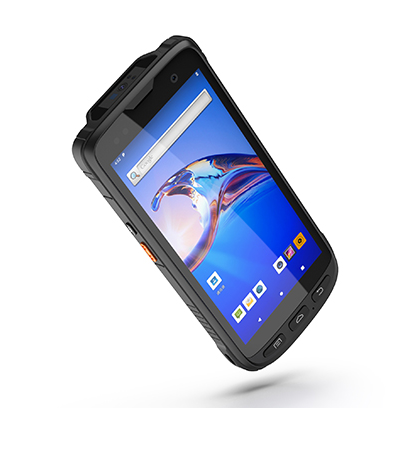

Ultra-Rugged All-Touch Computer with Zebra 2D scanner (LP-116)
- Share:
The Ultimate in Ultra-Rugged Enterprise-Class All Touch Computing Inside the Four Walls and Outdoors
The Ultimate in Technology Advancements
The LP-116 have it all: maximum computing power; rich locationing support; power-saving faster WiFi connections;
superior barcode capture; high-quality voice; 13/20 MP color rear camera for photos and videos; Powerful octa-core porcessor, ARM 4 core Cortex-A73 & 4 core Cortex-A53 adding 2.0GHz, Memory up to 4G+64G
The Ultimate Rugged Design
The LP-116 are designed to withstand years of the toughest conditions.
The device is virtually waterproof, drop-proof, dust-proof and tumble proof, with a 5.5inch Gorilla Glass touch panel and imager window that offer maximum scratch-resistance and shatter proofing.
Extended battery life with Worryfree WIFI
LP-116 adopts 4900mAh/9000mAh(option）Li-ion battery with lasting endurance. Advanced 12nm FinFET battery low power management prolongs the battery life greatly. Get the ultimate in value-add features. Get dependably superior WiFi connections with WorryFree WiFi.
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 166×79×18±2mm |
| Weight | N.W: 400g |
| Display | 5.5 inch IPS HD，dpi 720*1440 |
| Touchpanel | Corning Gorilla Glass 3rd generation Multi-touch capacitive screen |
| Expansion Slot | 1pcs Sim（MUP-C785）、1pcs TF |
| 1pcs PSAM（MUP-C785） | |
| Communication | 1pcs Type-c |
| Backlight | LED backlight |
| Keypad | Scan key, Number key |
| GPS | GPS and Beidou navagtion option |
| Error range±5m | |
| Camera | Front: 5MP fixed focus |
| Rear: 13 MP& 20 MP option Autofocus; flash LED generates balanced |
|
| PERFORMANCE CHARACTERISTICS | |
| CPU | MT 6771 Octa-core 64-bit processor |
| 4 core A73 + 4 core A53，2.0GHz | |
| Memory | RAM：2GB ROM：16GB（Standard） |
| RAM：4GB ROM：64GB（Optional） | |
| Operating System | Android 9.0 |
| Extended memory | Micro T card, up to 256GB |
| TELECOMMUNICATION | |
| 4G | TD-LTEBand38/39/40/41
FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| Data Rates | 2.4G/5G dual-band, IEEE802.11a/b/g/n/ac with WiFi roaming (seamless switching) |
| Bluetooth | v4.2+ EDR w/ Bluetooth Low Energy |
| USER ENVIRONMENT | |
| Operating Temp. | -20℃～50℃ |
| Storage Temp. | -20℃～70℃ |
| Humidity | 5%～95% RH (non-condensing) |
| Sealing | IP65 |
| Drop Test | Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
| DATA CAPTURE | |
| 1D Barcode | |
| 1D laser engine | HoneywellN431X/other |
| Symbologies | Code39、Code93、Code128、Codebar、
EAN-13、EAN-8、UPC-A、UPC-E、ITF14、 UCC/EAN-128、ITF25、Matrix25、EAN-128、ISBN etc. |
| 2D Barcode | |
| 2D laser engine | Zebra SE4710/Zebra SE2100/other |
| Symbologies | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,
MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal, JapanPostal,DutchPostal etc. |
| NFC（Option） | |
| Working freq | 13.56MHz |
| Protocol | ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 etc. |
| Tag supported | M1 card（S50，S70），CPU card，NFC tags etc. |
| Read/Write range | 5-10cm |
| BATTERY | |
| Capacity | Li-Ion 4900mAh & 9000mAh option with fast charging |
| Standby time | 360hrs if wireless communication are closed |
| Charging time | ＜5hrs（support quick charge） |
| Working time | 14+ hrs (full of charge) |
| ACCESSORIES | |
| Standard | 1xPower Supply; 1xLithium Polymer Battery;
1x Type-c charging cable |
| Option | Charging dock |
| WARRANTY | |
| Warranty | One year |
