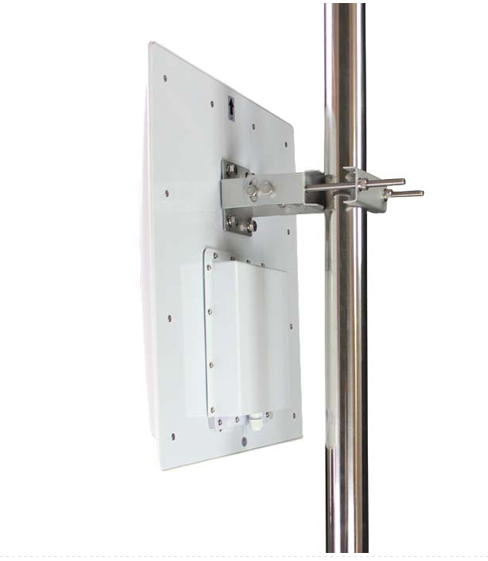

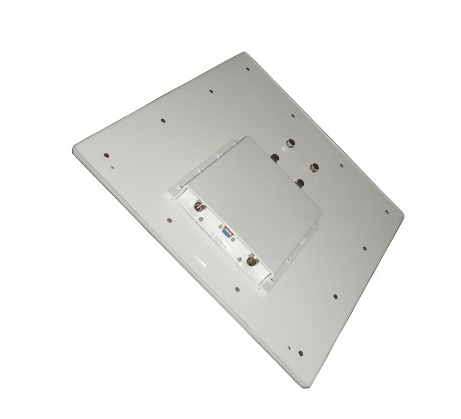

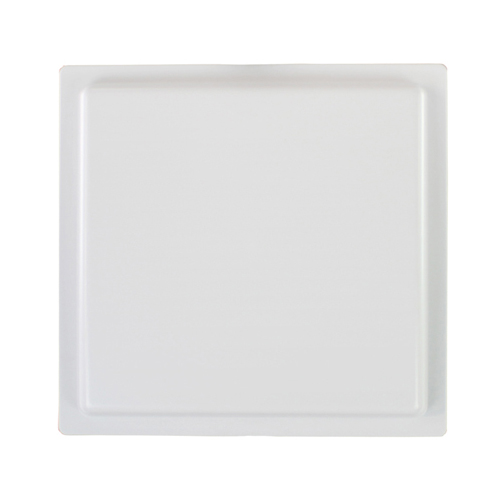

Long Range Integrated UHF RFID Reader
(FCC ID: 2AOJULP-001)
General Description
LP-001W a high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and ease installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control and many other applications.
Features
* Designed with low power dissipation and high integrated RFID chip solution
* Support only 865~868MHz in Egypt
* Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.
* Support temperature sensor RFID tag, moisture Sensor RFID tag and some other sensor RFID tags.
* Optimized multiple tags inventory algorithm, speed is more than 100 per second
* FHSS or Fix Frequency transmission
* RF output power up to 30dBm (1dbm step adjustable)
* Support command, polling and trigger mode
* Support EPC, TID and USER inventory in independently or conjunctively
* Support IAP firmware upgrading
* Low power dissipation with single +12 DC power supply
* Support RS232, RS485, Weigand, RJ45(TCP/IP, UDP) and WIFI at option
* Built-in 12 dBi circular polarized antenna with effective distance up to 20 m (adjustable)
* Provide DEMO and SDK for development
* Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.
Specifications
| Main Function | ||
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
| Support tags | Normal RFID tags; Temperature sensor or Moisture sensor RFID tag | |
| RSSI testing | Support | |
| RF Parameter | ||
| Frequency | Only 865~868MHz for Egypt | |
| RF output power | 30dBm±1dB(MAX) | |
| Step power | 1dBm | |
| Channel occupied bandwidth | ＜250KHz | |
| Antenna | Built-in 12dBi vertical linear /circular polarized antenna | |
| Tag Reading | ||
| Reading distance | ≥25m | 12dBi circular polarized antenna, 30dBm,
Standard E41 testing card |
| Writing distance | ≥6m | |
| Multiple tag reading speed | ≥100pcs/s | |
| Communication Parameter | ||
| Interface | RS232, RS485, Weigand;
RJ45(TCP/IP, UDP), WIFI at option |
|
| Baud rate | 115200bps | |
| Power Parameter | ||
| Operating Voltage | DC 12.0V (+9~24V) | |
| Operating Current | ≤600mA / DC12V | |
| Standby Current | ≤100mA / DC12V | |
| Working Environment | ||
| Operating Temperature | -20~+55℃ | |
| Storage Temperature | -30~+85℃ | |
| Operating Humidity | <95%RH (+25℃) Non-condensing | |
Built-in Antenna Specification
| Electrical Specifications | |
| Freq Range | Only 865~868MHz in Egypt |
| Gain | 12dBi |
| Horizontal Beam width | 42º |
| Vertical Beam width | 38º |
| F/B Ratio | ≥23dB |
| VSWR | ≤1.3 |
| Impedance | 50 Ω |
| Max. Power | 100W |
| Polarization | Linear polarization |
| Waterproof | IP65 |
| Lightning Protection | Direct Ground |
| Mechanical Specifications | |
| Dimension | 445*445*56mm |
| Weight | 2.6kg |
| Rated Wind Velocity | 30 m/s |
| Reflector material | Aluminum |
| Radome Color | White |
| Radome material | ABS |
| Operating temperature | -40~80°C |
Applications
Vehicle Management
Asset Management
Personnel Management
WIP Management
Logistic Management and Traceability
Anti-counterfeiting Track and Trace
Mining Management
Shipyard Management
Location Management
