RFID Passive Temperature Monitoring Tag for power switchgear moving contact

RFID Passive Temperature Monitoring Tag for power switchgear moving contact

Key parameters

Protocol: ISO 18000-6C
Freq: 902-928MHz
Chip: LTU3
Memory: TID: 128 bits
EPC: 96 bits
User: 160bits(user editable part-128bits, sensor parameter-32bits)
Read distance: 2.5M (EIRP=4W)
Size: 29*15.6*19mm
Working temperature: -40℃~150℃
Endurance temperature -40℃~225℃
Protection level : IP55
Insulation resistance ≥2000MΩ
Power frequency withstand voltage 39kV/ 5min、 42kV/1min
Partial discharge level 24kV≤10pC
Lightning protection grade 170kV/50ms
Radiation immunity level ≥10V/m

Application

Power switchgear cabinet moving contact online temperature real-time monitoring

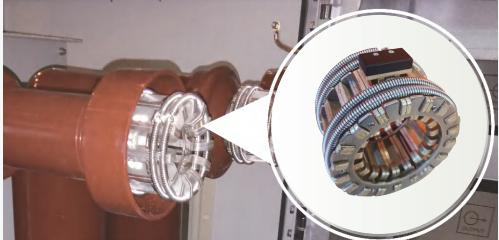

Installation methods and examples
