New Generation Best-in-class RFID Read Range Portable UHF Reader(LP-118-H)
- Share:

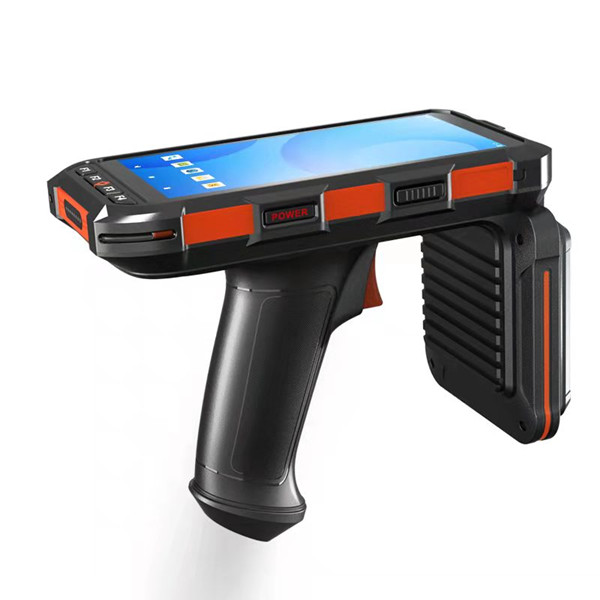

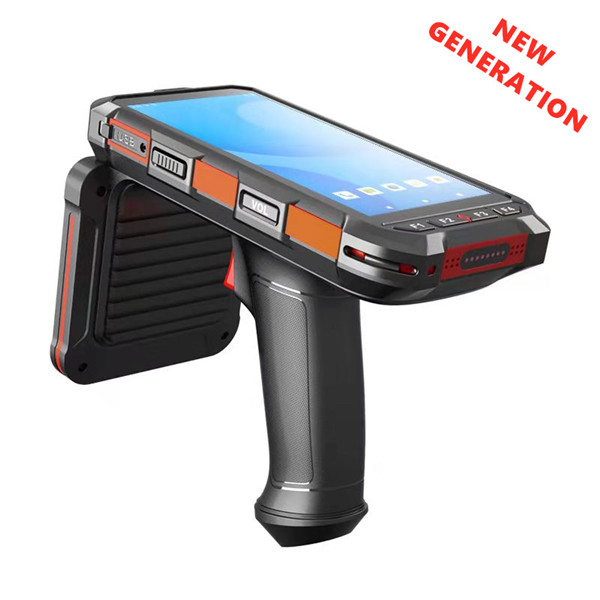

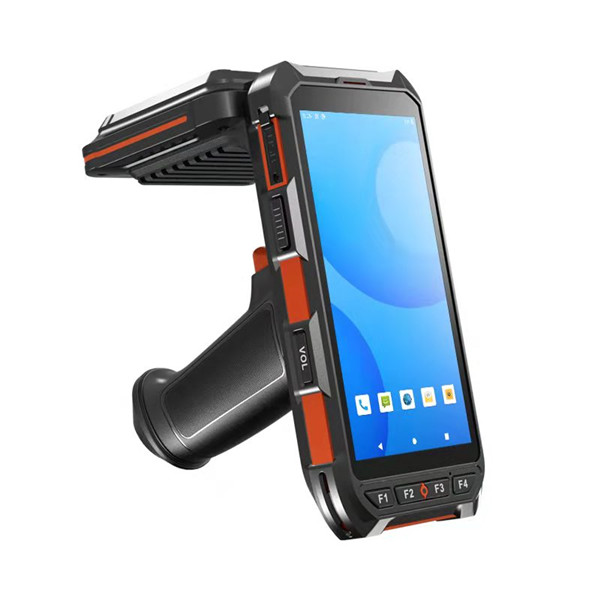

LightPioneer’s LP-118-H rugged Long-Range UHF Handheld RFID Reader brings a new level of efficiency to inventory management, Warehouse and Distribution,Transportation and Logistics etc., with superior RFID read performance, range, and an integrated UHF reader boost task speed and ease of use.
The portable rfid reader has a linear polarized RFID antenna for 60 ft long range reading. The handheld scanner features standard- and extended-range Honeywell 2D data capture. Workers can easily capture all the right barcodes on numerous labels, all with one press of the scan trigger.
The Android RFID reader offers a 5 ft./1.5 m drop specification and with IP65 sealing, it can handle splashing liquid and dust. The device is one of the lightest UHF RFID readers in its class and is built for easy one-handed use, whether workers are right- or left-handed.
Highlights:
– Android 10
– Octa-Core 2.0 GHz
– 5.5″ HD Display, Dual Camera (5MP / 13MP)
– Memory 4GB RAM / 64GB ROM
– 4dBi High Gain UHF Antenna
– RFID UHF GEN2, ISO/IEC 18000-6C/6B (Option)
– Honeywell 2D Barcode Scanner
– 4G LTE, WIFI, BLE V4.2, GPS
– 7200mA Rechargeable Battery
– IP65 / Drop 1.5 m
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | |||
| Dimension | 171mm(H)x81mm(W)x20.4mm(D)±2 mm(without the pistol grip and UHF shield) | ||
| Weight | Net Weight :600g (including battery&wrist strap) | ||
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | ||
| Backlight | LED backlight | ||
| Expansions | 2 PSAM, 2 SIM, 1 TF | ||
| Battery | Rechargeable li-ion polymer, 3.8V, 7200mAh | ||
| PERFORMANCE CHARACTERSTICS | |||
| CPU | Cortex A73 2.0GHz octa-core | ||
| Operating System | Android 10.0 | ||
| Storage | 3GB RAM/32GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | ||
| USER ENVIRONMENT | |||
| Operating Temp. | -20℃ to 50℃ | ||
| Storage Temp. | -20℃ to 70℃ | ||
| Humidity | 5%RH to 95%RH(non-condensing) | ||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
| Sealing | IP65, IEC compliance | ||
| ESD | ±15kv air discharge, ±8kv direct discharge | ||
| DEVELOPMENT ENVIRONMENT | |||
| SDK | LP Software Development Kit | ||
| Language | Java | ||
| Environment | Android Studio or Eclipse | ||
| DATA COMMUNICATION | |||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20;
WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | ||
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| DATA CAPTUER | |||
| BARCODE READER(OPTIONAL) | |||
| 2D Barcode | 2D CMOS Imager | Honeywell N6703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
| COLOR CAMERA | |||
| Resolution | Rear 13 megapixel, front 5.0 megapixel | ||
| Lens | Auto-focus with LED flash | ||
| RFID READER(OPTIONAL) | |||
| RFID NFC | Frequency | 13.56MHz | |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | ||
| R/W Range | 2cm to 5cm | ||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | ||
| Antenna Gain | Circular antenna(4dBi) | ||
| R/W Range | 18m(outdoor for white card) | ||
| PSAM SECURITY(OPTIONAL) | |||
| Protocol | ISO 7816 | ||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | ||
| Slot | 2 slots(maximum) | ||
| ACCESSORIES | |||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | ||

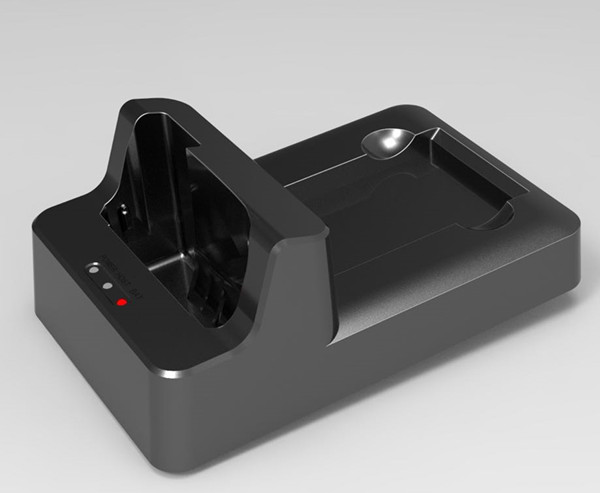

| Optional | Cradle Charging | ||
