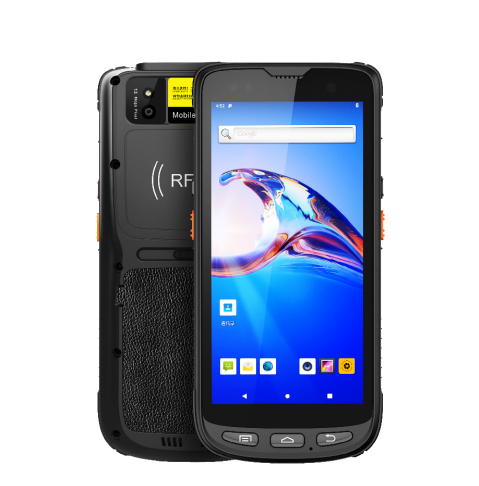

2021 NEW Integrated UHF RFID Handheld Reader

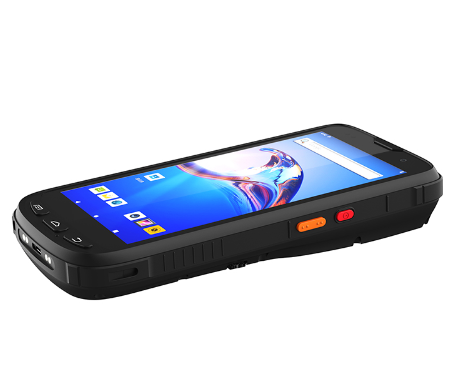

RFID brings a new level of efficiency to inventory and asset management, order fulfillment and more. To maximize productivity, you want to give your workers a device that provides a new level of comfort, task speed, ease of use and accuracy to your RFID applications. The LP-117 handheld RFID reader delivers it all. You get the signature rugged design of LightPioneer’s industrial handheld products for maximum uptime. The LP-117 is one of the lightest devices in its class with the right ergonomics for all-day comfort. Superior RFID read performance and receiver sensitivity enable lightning fast capture of even the most challenging RFID tags. Workers can read both RFID tags and barcodes with point and shoot simplicity. And you can create intuitive Android applications that use the LP-117’s powerful computing platform, large touchscreen, and elegant keypad.
The LP-117 — the next evolution in handheld RFID readers.
The LP-117 comes with Android 9.0 operating systems and P60 powerful 2.0GHz octa-core,which integrate seamlessly to automate key processes and boost productivity in real-time.

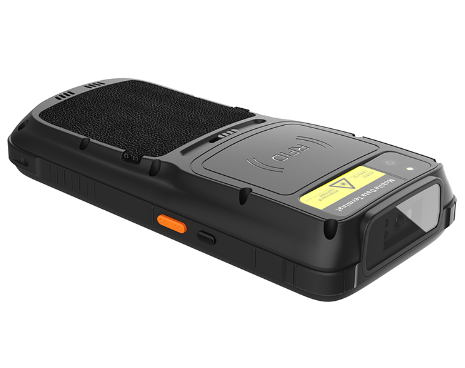

Workers could capture RFID tags and barcodes on one device. The LP-117’s integrated circular antenna delivers extraordinary reliability no matter the orientation of the tag. Meanwhile, it adopts Zebra’s advanced scanning technology to provide lightning fast standard-range capture of printed and electronic 1D and 2D barcodes, regardless of condition.
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 166×79×27±2mm |
| Weight | N.W: 430g |
| Display | 5.5 inch IPS HD，dpi 720*1280 |
| Touchpanel | Corning Gorilla Glass 3rd generation Multi-touch capacitive screen |
| Expansion Slot | 1pcs Sim（MUP-C785）、1pcs TF |
| 1pcs PSAM（MUP-C785） | |
| Communication | 1pcs Type-c |
| Backlight | LED backlight |
| Keypad | Scan key, Number key |
| GPS | GPS and Beidou navagtion option |
| Error range±5m | |
| Camera | Front: 5MP fixed focus |
| Rear: 13 MP& 20 MP option Autofocus; flash LED generates balanced |
|
| BATTERY CHARACTERISTICS | |
| Capacity | 3.8V Li-Ion 4900mAh & 9000mAh option with fast charging |
| Standby time | 360hrs if wireless communication are closed |
| Charging time | ＜5hrs（support quick charge） |
| Working time | 14+ hrs (full of charge) |
| PERFORMANCE CHARACTERISTICS | |
| CPU | MT 6771 Octa-core 64-bit processor |
| 4 core A73 + 4 core A53，2.0GHz | |
| Memory | RAM：2GB ROM：16GB（Standard） |
| RAM：4GB ROM：64GB（Optional） | |
| Operating System | Android 9.0 |
| Extended memory | Micro T card, up to 256GB |
| TELECOMMUNICATION | |
| 4G | TD-LTE Band38/39/40/41
FDD-LTE Band1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| Data Rates | 2.4G/5G dual-band, IEEE802.11a/b/g/n/ac with WiFi roaming (seamless switching) |
| Bluetooth | v4.2+ EDR w/ Bluetooth Low Energy |
| USER ENVIRONMENT | |
| Operating Temp. | -20℃～50℃ |
| Storage Temp. | -20℃～70℃ |
| Humidity | 5%～95% RH (non-condensing) |
| Sealing | IP65 |
| Drop Test | Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
| DATA CAPTURE | |
| RFID (Option) | |
| UHF | |
| Frequency Range | 915MHz、865MHz (865-868MHz & 902-928MHz) |
| Standards Supported | EPC C1 GEN2 ISO18000-6C |
| Read Range | 0-14m (Own-designed UHF modules option) |
| RFID Power Output | 0 dBm to +30 dBm |
| RFID Antenna Type | Integrated Circular Polarized |
| HF | |
| Working freq | 13.56MHz |
| Standards Supported | ISO15693、ISO14443 dual-protocol |
| Read Range | 0-7cm |
| LF | 125K/134.2K ear tag |
| HF (CPU card) | Read/Write CPU card working with PSAM card |
| Active 2.45G (Custom) | Read range 200m, 200pcs tag reading for one time |
| BARCODE SCANNING (Option) | |
| 1D Barcode | |
| 1D laser engine | HoneywellN431X/other |
| Symbologies | Code39、Code93、Code128、Codebar、EAN-13、EAN-8、UPC-A、
UPC-E、ITF14、UCC/EAN-128、ITF25、Matrix25、EAN-128、ISBN etc. |
| 2D Barcode | |
| 2D laser engine | Zebra SE4710/Zebra SE2100/other |
| Symbologies | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,
USPlanet,UKPostal,AustralianPostal,JapanPostal,DutchPostal etc. |
| NFC（Option） | |
| Working freq | 13.56MHz |
| Protocol | ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 etc. |
| Tag supported | M1 card（S50，S70），CPU card，NFC tags etc. |
| Read/Write range | 5-10cm |
| FINGERPRINT（Option） | |
| Functions | Fingerprint input, image processing, fingerprint comparison, fingerprint deletion, etc |
| Sensor | TCS1ST with FBI authentication |
| Sensor type | Capacitive, area sensor |
| Imager size | 256*360 pixel |
| Resolution | 500DPI |
| Capacity | 1000pcs |
| ACCESSORIES | |
| Standard | 1xPower Supply; 1xLithium Polymer Battery、1x Type-c charging cable |
| Option | Charging dock |
| WARRANTY | |
| Warranty | One year |
