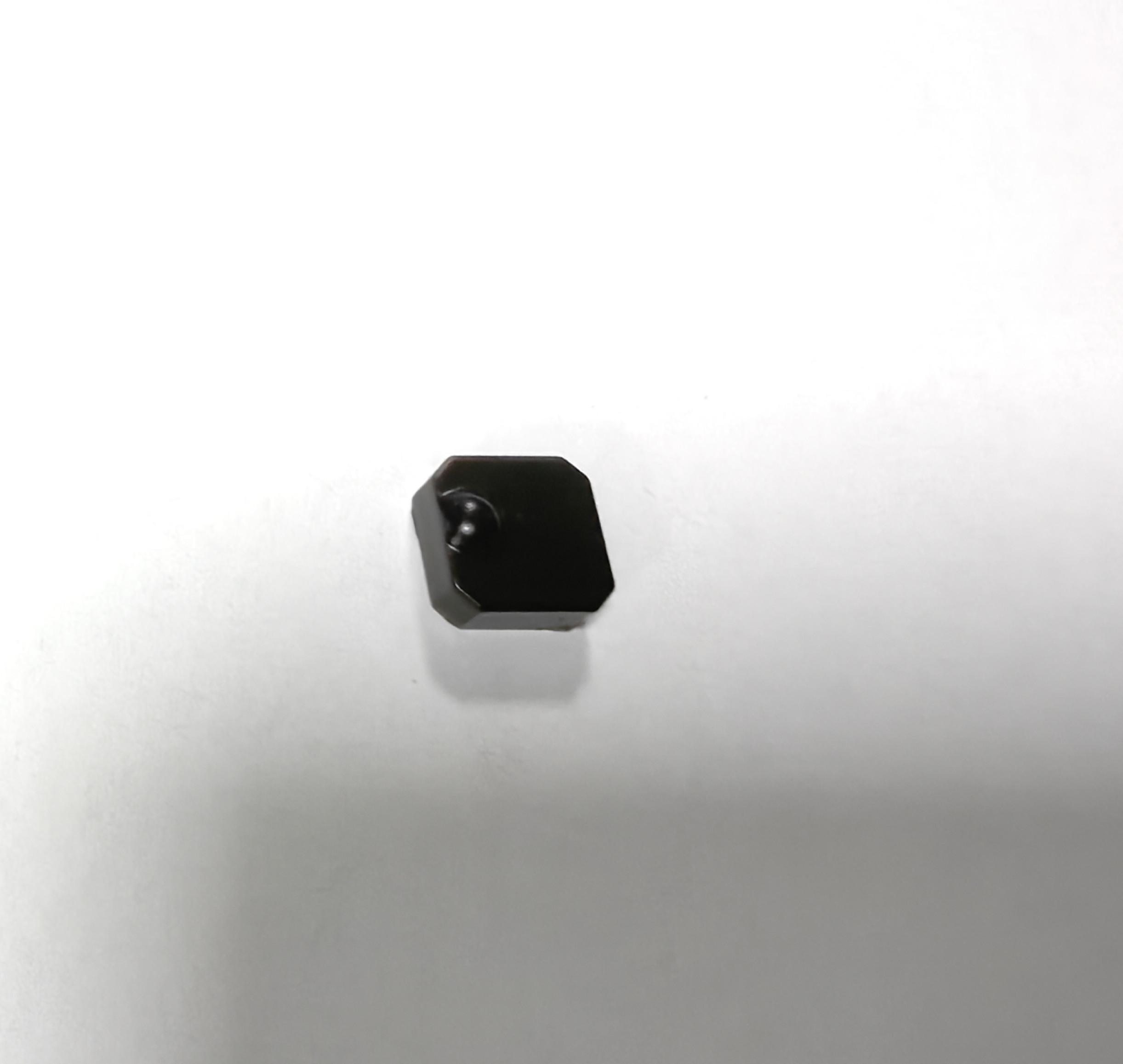

Micro RFID tag 7*7mm for metal asset tracking

7mm on metal rfid tag

Micro RFID tag 7*7mm for metal asset tracking

Category:

[Functional Specifications]

RF protocol: EPC Class 1 Gen 2; ISO18000-6C
Operating frequency:  CN&US (902-928)Mhz ;
IC chip: R6/R6P
Memory configuration: 96(128)-bit EPC ; 0(32)-bit user memory; 64-bit TID
RF Functionality: Read / write
Data retention: Up to 50 years
Application: On Metal surface

[Physical Specifications]

Size: 7.0×7.0x2.5mm(not included the epoxy point)

Weight:  0.58g
Material: Ceramics
Installation mode: Adhesive tape(3M)
Color:  Black and White

[Environmental and Compliance]

IP Grade: IP68 Standard: GB/4208
Operational temperature: “-60°С≈85°С
Application temperature: “-45°С≈150°С
Thermal Shock:  Pass Standard:GB/T 2423.22
Hygrothermal alternating: Pass Standard:GB/T 2423.4
Acid and alkali resistance:  Pass Standard:GB/T11547
Vibration test:  Pass Standard:GB/T 2423.10
Industry certification:  ROHS/REACH

[Performance Characteristics]

Fixed RFID reader [PERP=2W]: ≧1.0M
Handheld RFID reader [PERP=0.8≈1W]:  ≧0.5M
