Best-in-Class RFID Read Range With a Powerful Android 10.0 Platform

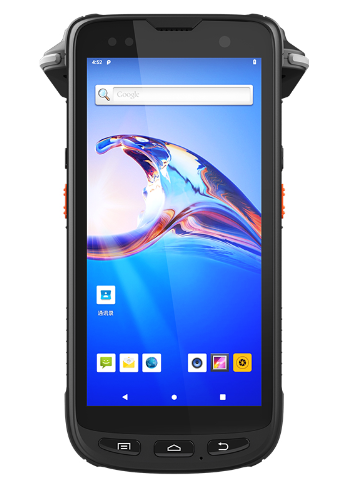

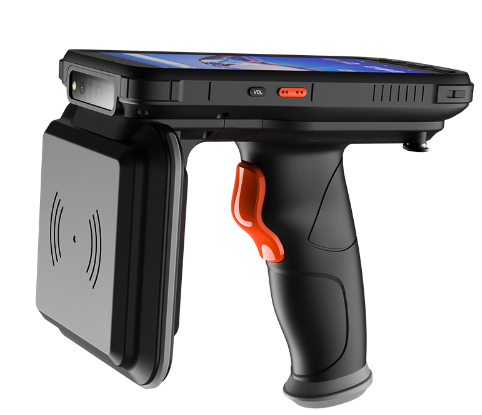

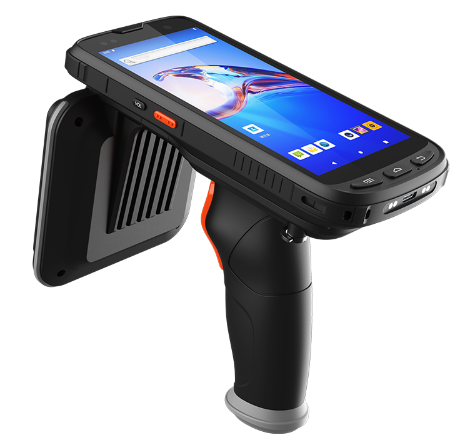

The LP-116-H Integrated long-range RFID handheld reader brings a new level of efficiency and accuracy to inventory management, order fulfillment, cross-docking, and more. The integrated long-range antenna supports a best-in-class RFID read range, and coupled with Light Pioneer’s high-performance ASIC radio technology, delivers higher throughput, so inventory counts can be accomplished more quickly and accurately. With Light Pioneer’s constant signature rugged design, the LP-116-H is built for your semi-industrial environments, yet is lightweight with the right ergonomics for all-day comfort. And the large touchscreen, intelligentized keypad and Android OS deliver an intuitive and flexible platform for your RFID application needs today and tomorrow.
FEATURES:
High Performance Computing Platform
P60 octa-core processor plus 2.0GHz, ARM 4 core A73 & 4 core A53 with large memory 4+64G（option）
Android 10.0 OS
Android 10.0 system is installed, optimized version is continuously updated
Signature Rugged Design & Industrial Grade Components
Rugged engineering plastics and new generation Gorilla Glass touch panel bring maximum scratch-resistance
and shatter-proofing to two of the most vulnerable device features. Industrial and military grade components ensure stability and endurance in harsh environments
Ultra Long Life Time
“All-in-one” design 9000mA large battery with unique 12nm FinFET battery low power management ensure lifttime
Own-designed Best-in-class UHF RFID Engine
The UHF module is based on lmpinj Indy R2000 chip, adding with LightPioneer’s integrated omnidirectional ceramic antenna, bring maximum reading distance up to 20m and the best performance for single/multiple tag
reading.
Integrated Enterprise-class 1D/2D Barcode Scanning
Utilizing brand (Honeywell &Zebra) 1D/2D scanner delivers lightning fast standard-range capture of printed and electronic 1D and 2D barcodes, regardless of condition.
Excellent Mechanical Protection
The safety drop height is 5ft/1.5m， IP65 protection grade can resist dusts and splashes effectively.
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 166×79×31±2mm |
| Weight | 650g |
| Display | 5.5 inch IPS HD，dpi 720*1440 |
| Touchpanel | Corning Gorilla Glass 3rd generation Multi-touch capacitive screen |
| Expansion Slot | 1pcs Sim（MUP-C785）、1pcs TF |
| 1pcs PSAM（MUP-C785） | |
| Communication | 1pcs Type-c |
| Backlight | LED backlight |
| Keypad | Scan key, Number key |
| GPS | GPS and Beidou navagtion option |
| Error range±5m | |
| Camera | Front: 5MP fixed focus |
| Rear: 13 MP& 20 MP option Autofocus; flash LED generates balanced |
|
| BATTERY CHARACTERISTICS | |
| Capacity | 3.8V Li-Ion 9000mAh option with fast charging |
| Standby time | 360hrs if wireless communication are closed |
| Charging time | ＜5hrs（support quick charge） |
| Working time | 14+ hrs (full of charge) |
| PERFORMANCE CHARACTERISTICS | |
| CPU | MT 6771 Octa-core 64-bit processor |
| 4 core A73 + 4 core A53，2.0GHz | |
| Memory | RAM：2GB ROM：16GB（Standard） |
| RAM：4GB ROM：64GB（Optional） | |
| Operating System | Android 10.0 |
| Extended memory | Micro T card, up to 256GB |
| TELECOMMUNICATION | |
| 4G | TD-LTE Band38/39/40/41
FDD-LTE Band1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge（850/900/1800/1900MHz） |
| Data Rates | 2.4G/5G dual-band, IEEE802.11a/b/g/n/ac with WiFi roaming (seamless switching) |
| Bluetooth | v4.2+ EDR w/ Bluetooth Low Energy |
| USER ENVIRONMENT | |
| Operating Temp. | -20℃～50℃ |
| Storage Temp. | -20℃～70℃ |
| Humidity | 5%～95% RH (non-condensing) |
| Sealing | IP65 |
| Drop Test | Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
| DATA CAPTURE | |
| RFID Reader(Option) | |
| UHF | |
| Frequency Range | 915MHz、865MHz (865-868MHz & 902-928MHz) |
| Standards Supported | EPC C1 GEN2 ISO18000-6C |
| Read Range | Up to 22m (Own-designed UHF modules option) |
| RFID Power Output | 0 dBm to +33 dBm |
| RFID Antenna Type | Integrated Circular Polarized (5dbi) |
| HF | |
| Working freq | 13.56MHz |
| Standards Supported | ISO15693、ISO14443 dual-protocol |
| Read Range | 0-7cm |
| LF | 125K/134.2K ear tag |
| HF (CPU card) | Read/Write CPU card working with PSAM card |
| Active 2.45G (Custom) | Read range 200m, 200pcs tag reading for one time |
| BARCODE SCANNING (Option) | |
| 1D Barcode | |
| 1D laser engine | HoneywellN431X/other |
| Symbologies | Code39、Code93、Code128、Codebar、EAN-13、EAN-8、UPC-A、UPC-E、ITF14、UCC/EAN-128、ITF25、Matrix25、EAN-128、ISBN etc. |
| 2D Barcode | |
| 2D laser engine | Zebra SE4710/Zebra SE2100/other |
| Symbologies | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,
USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,DutchPostal etc. |
| NFC（Option） | |
| Working freq | 13.56MHz |
| Protocol | ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 etc. |
| Tag supported | M1 card（S50，S70），CPU card，NFC tags etc. |
| Read/Write range | 5-10cm |
| ACCESSORIES | |
| Standard | 1xPower Supply; 1xLithium Polymer Battery、1x Type-c charging cable |

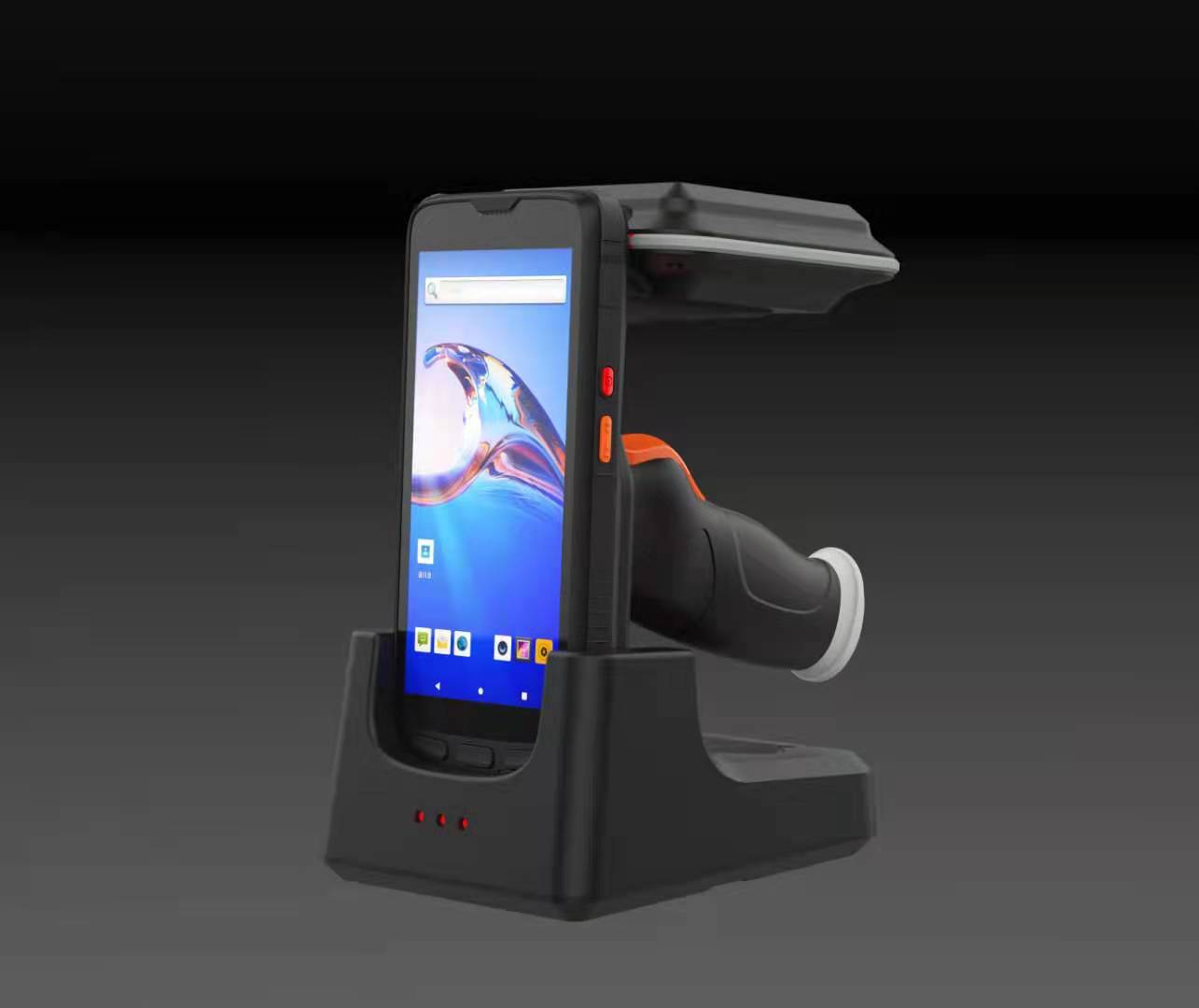

| Option | Charging dock |
| WARRANTY | |
| Warranty | One year |
