High Temperature-sensitive Ceramic RFID tag for metal parts 13*9*4mm

High Temperature-sensitive Ceramic RFID tag for metal parts 13*9*4mm

Key Parameters

Protocol: ISO 18000-6C
Freq: 902-928MHz
Chip: LTU3
Memory: TID: 128 bits
EPC: 96 bits
User: 160bits(user editable part-128bits, sensor parameter-32bits)
Read distance: 3M (EIRP=4W)
Size: 13*9*4mm
Working temperature: -40℃~150℃
Endurance temperature -40℃~225℃
Protection level : IP67
Insulation resistance ≥2000MΩ
Power frequency withstand voltage 39kV/ 5min、 42kV/1min
Partial discharge level 24kV≤10pC
Lightning protection grade 170kV/50ms
Radiation immunity level ≥10V/m

Application

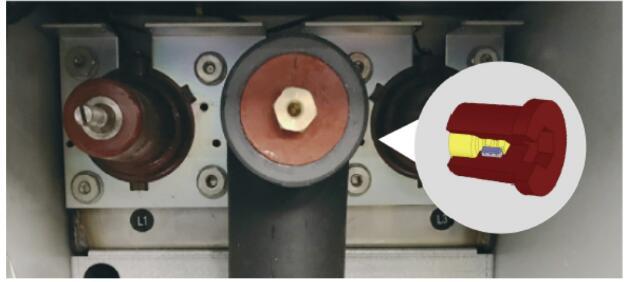

Close to the metal connector inside the plug of the ring main unit and pour it inside the epoxy resin

Pasted on the surface of other temperature measuring points, especially on the metal surface

Installation methods and examples
