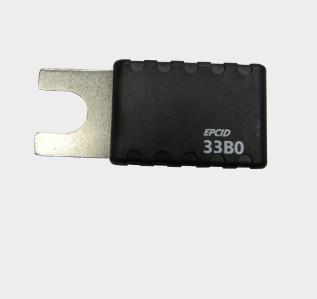

High Temperature Passive RFID Sensors designed for switchgear busbar

High Temperature Passive RFID Sensors designed for switchgear busbar

Key Parameters:

Protocol: ISO 18000-6C
Freq: 902-928MHz
Chip: LTU3
Memory: TID: 128 bits
EPC: 96 bits
User: 160bits(user editable part-128bits, sensor parameter-32bits)
Read distance: 8M (EIRP=4W)
Size: 74*34*11mm  (U-shaped opening spacing 14mm)
Material: metal+plastic
Working temperature: -40℃~150℃
Endurance temperature -40℃~225℃
Protection level : IP55
Anti-metal: Metal surface optimization
Insulation resistance ≥2000MΩ
Power frequency withstand voltage 39kV/ 5min、 42kV/1min
Partial discharge level 24kV≤10pC
Lightning protection grade 170kV/50ms
Radiation immunity level ≥10V/m

Application:

Power grid online temperature real-time monitoring, including high-voltage transformation and medium and low voltage distribution facilities key points online temperature real-time monitoring;

High load IT equipments status monitoring, including IDC machine room server heating condition implementation track;

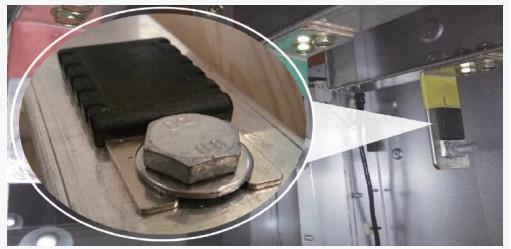

Installation methods and examples:
