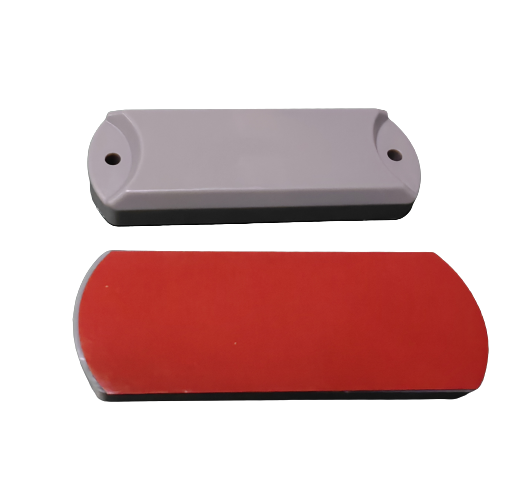

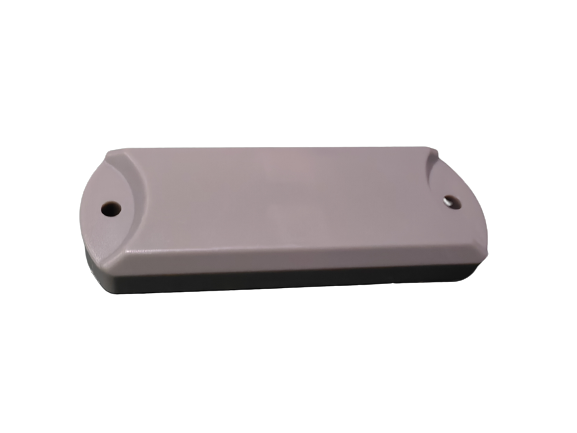

Hard RFID UHF tag with long read range for waste bins, pallet containers

Hard RFID UHF tag with long read range for waste bins, pallet containers

Category:

[Functional Specifications]

RF protocol: EPC Class 1 Gen 2; ISO18000-6C
Operating frequency:  EU865-868MHz & US (902-928)Mhz ;
IC chip: Impinj-M4QT/ALINE-HIGG3
Memory configuration: (96-128)-bit EPC ; 512-bit user memory; 96-bit TID
RF Functionality: Read / write
Data retention: Up to 50 years
Application: On/Off Metal surface

[Physical Specifications]

Size: 85×30x11mm(not included the epoxy point)

Weight:  15.34g
Material: PLASTIC/PCB
Installation mode: Adhesive tape(3M)
Color:  Black /White

[Environmental and Compliance]

IP Grade: IP68 Standard: GB/4208
Operational temperature: “-60°С≈85°С
Application temperature: “-45°С≈150°С
Thermal Shock:  Pass Standard:GB/T 2423.22
Hygrothermal alternating: Pass Standard:GB/T 2423.4
Acid and alkali resistance:  Pass Standard:GB/T11547
Vibration test:  Pass Standard:GB/T 2423.10
Industry certification:  ROHS/REACH

[Performance Characteristics]di

Fixed RFID reader [PERP=2W]: ≧10M
Handheld RFID reader [PERP=0.8≈1W]:  ≧5M
