Description:

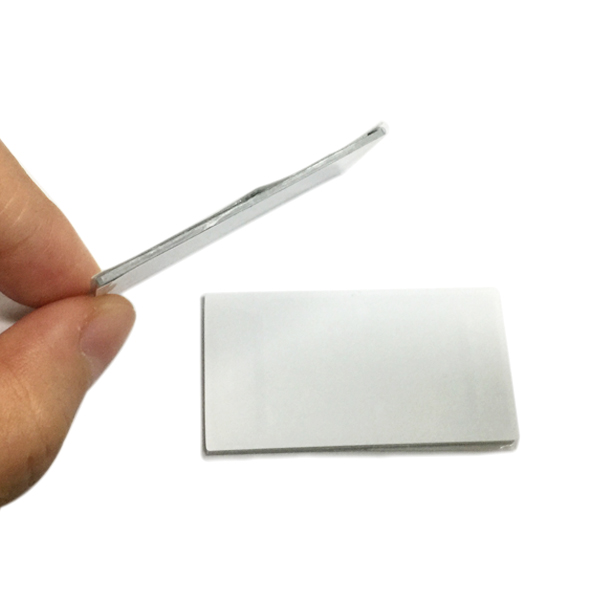

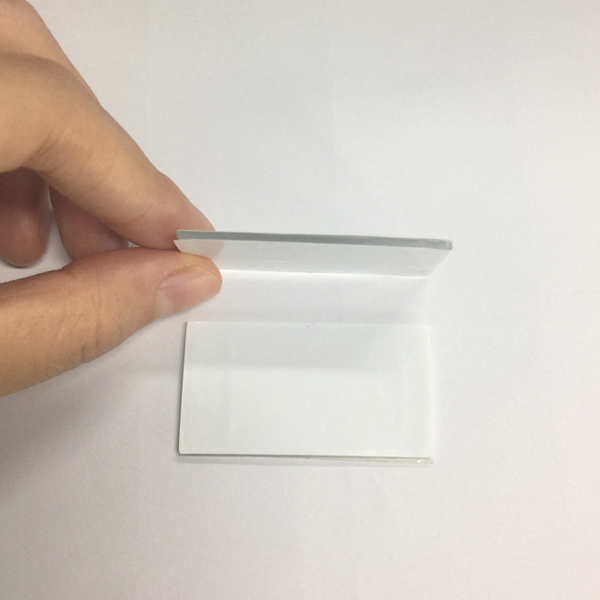

LP-5325 is a super slim anti-metal uhf tag, the thickness is only 1mm. LP-5325 can meet the requirements of strong electromagnetic environment. At the same time, the LP-5325 can also be applied in normal anti-metal environment. The reading distance can reach over 2 meters.
Features:
Proper size, Self-adhesive mounted tag
Super slim with High-strength durability
Support printing on tag
Cost-effective
Protocol | UHF EPC Global Class1 Gen2, ISO 18000-6C |
Operating Frequency | 920-925 MHz, 865-867MHz |
Working Mode | Read/Write |
Polarization Mode | Linear |
Memory | Monza R6/ EPC memory: 96bits User memory: 0bits |
Data Protection | Password Change,Lock and Destroyed |
Data Maintain | Over 10 years, Write circle above 100,000 times |
Application Temperature | -20~65℃ / -4~149℉ |
Storage Temperature | -30~85℃ / -22~185℉ |
Read/Write Distance | 0.6 m (Handheld Reader with 28dBm) |
1 m (Fixed Reader with 30dBm) | |
(Reading distance depends on the environment,readers,etc) | |
Size | 50 x 25x 0.8mm |
Color | Can be customized |
