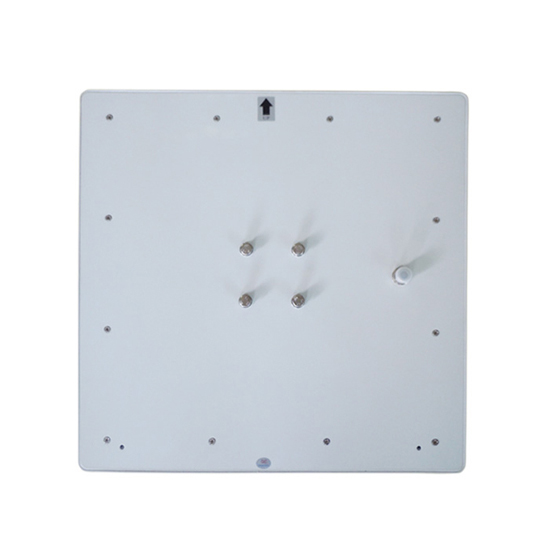

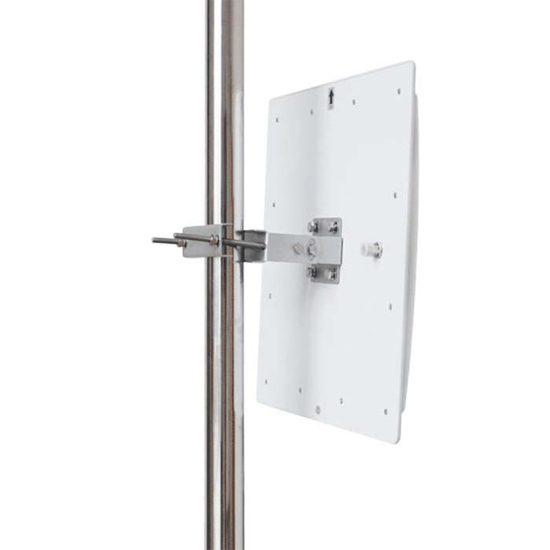

12dbi linear polarization RFID UHF Reader Antenna(LP-235)

12dbi linear polarization RFID UHF Reader Antenna(LP-235)

Category:
Model Name LP-235
Operationg Freq 865MHz-868MHz or 902MHz-928MHz
Polarization Linear Polarization or Vertical Polarization
Gain(dbi) 12dbi
Mechanical tilt ±10
Half-power angle Hor:40 Ver:40
Front-to-Back Ratio ≥25
Impedance (Ω) 50
VSWR ≤1.3
Power(W) 50
Lightning protection Directly connect to ground
Connector N
Antenna Size 450×450×40mm
Net Weight 2KG
Wind Resistance 60(m/s)
Material ABS/Glass fibre
Color White
